Radium – Nissan – Fuel Rail – Top Feed Conversion – Nissan SR20DET

Radium Fuel Rail, Top Feed Conversion, Nissan SR20DET (S13)

This CNC machined fuel rail for the Nissan SR20DET features a large 0.69 inch internal bore and high flow ports that accept a wide variety of adapter fittings to suit any custom installation. The black satin anodized finish makes it safe to use with all blends of gasoline and alcohol fuels. It installs to the factory fuel rail mounting points and uses aftermarket top-feed fuel injectors.

This fuel rail features 3 large threaded ports (ends and one on the bottom) that are -8AN ORB female. It also has a 1/8NPT female port on the top.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

This fuel rail features an extra 8AN ORB port in the center on the bottom. This can be used as a location for a Radium FPD-R fuel pulse damper (P/N 20-0176).

WHATS INCLUDED

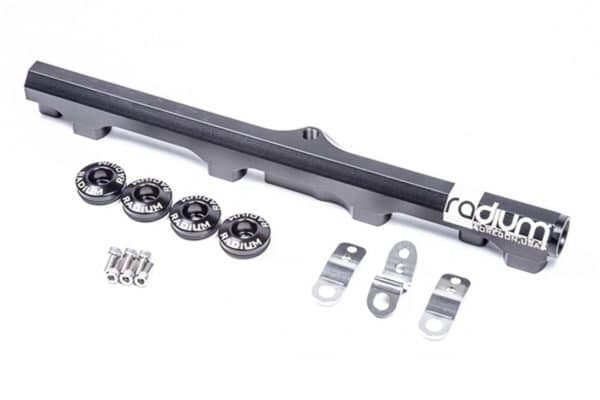

The photo shows what is included in this kit. Fittings must be purchased separately.

-Black Anodized Aluminum Fuel Rail
-Black Anodized Aluminum 30mm Injector Seats (20-0160-04)
-3x Stainless Steel Mounting Brackets
-6x Stainless Steel Mounting Bolts
