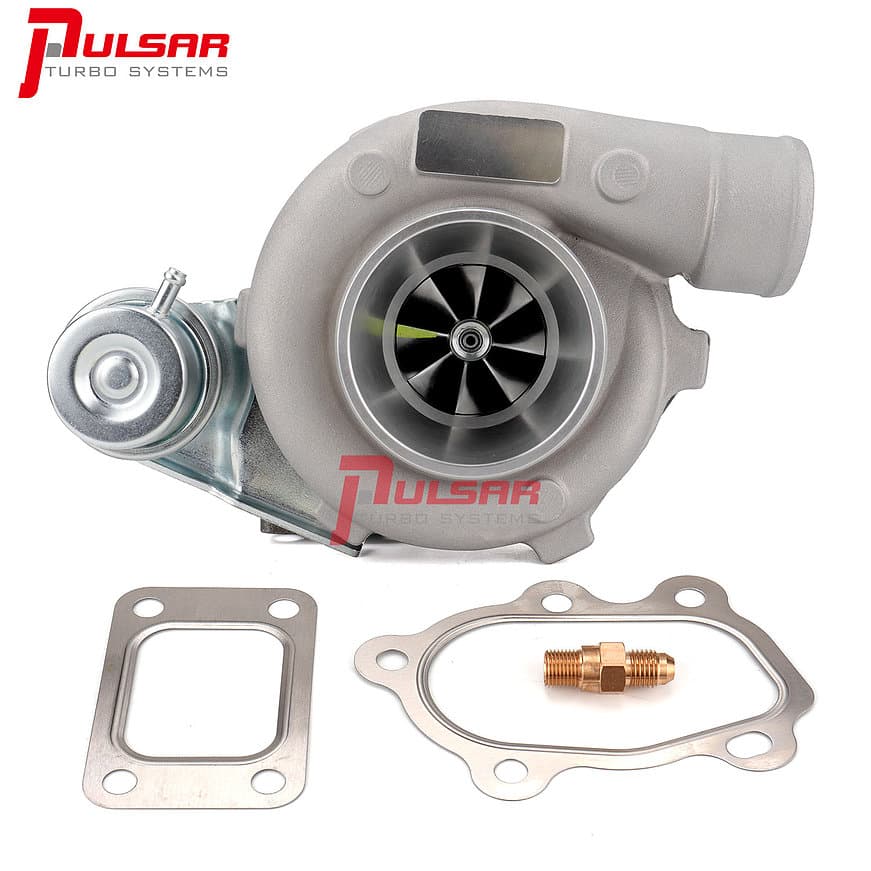

Pulsar PTX2871R Gen 2

Please note, T51R housing option requires an extra 7 days handling time
Please note, although Gen 2 internally , this unit is supplied with a Gen 1 compressor housing.
Recommended engine displacement 1.6 to 2.5 litres. Power outputs up to 550 hp possible.
Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft movement.
54 / 71mm 8 blade upgraded billet compressor wheel with better flow than the 11 blade Gen 1 wheel.
Inconel 713c 54 / 47 mm turbine wheel
0.64, 0.86 A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel turbine housing options all available
Standard or T51R mod compressor housing options available
Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).
Wastegate actuator supplied on internally gated units with compressor housing. (13psi)
Compressor Inlet :3″
Compressor Outlet: 2″
Oil Feed: 7/16-24 UNF
Oil Drain: Std T3 oil drain flange
Water In/Outlet: M14x1.5
