Pulsar – PTG Series – PSR7170G / 40-1150

Pulsar – PTG Series – PSR7170G / 40-1150

Pulsar – PTG Series – PSR7170G / 40-1150

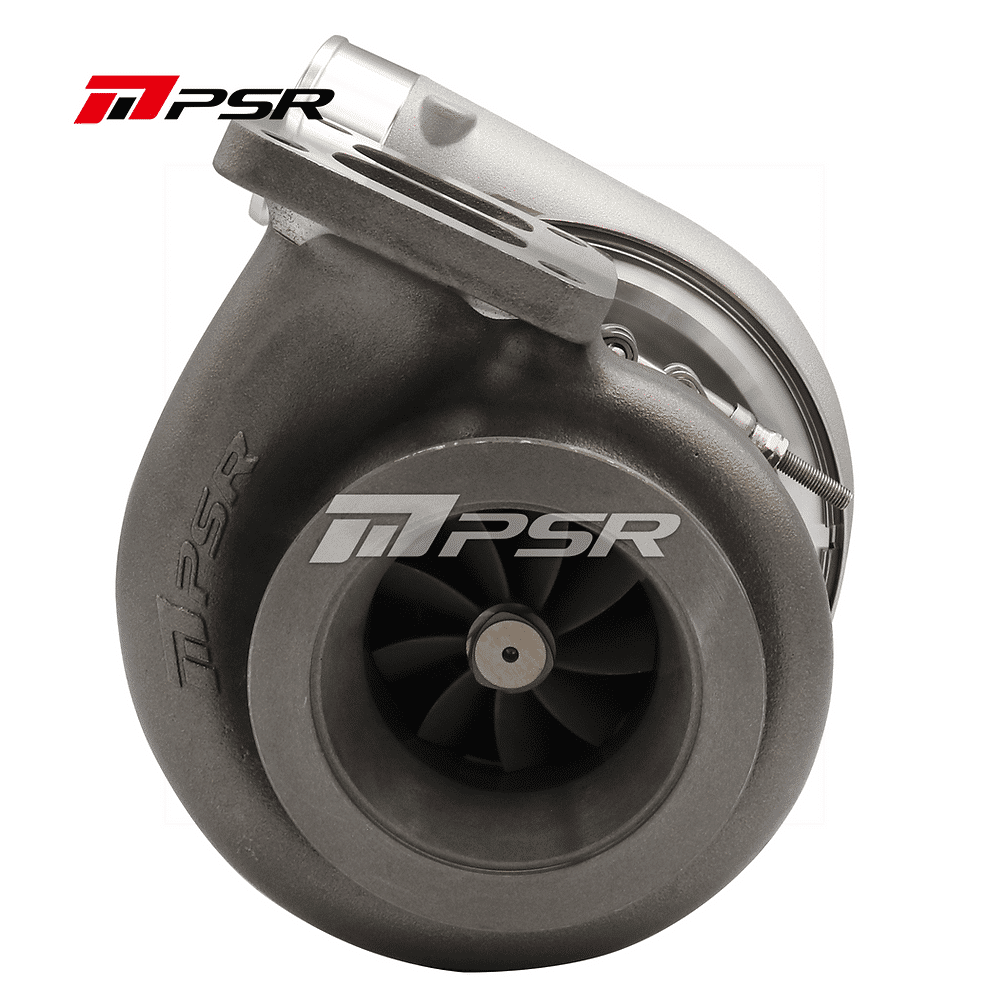

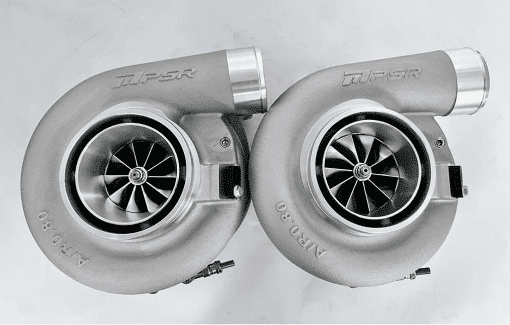

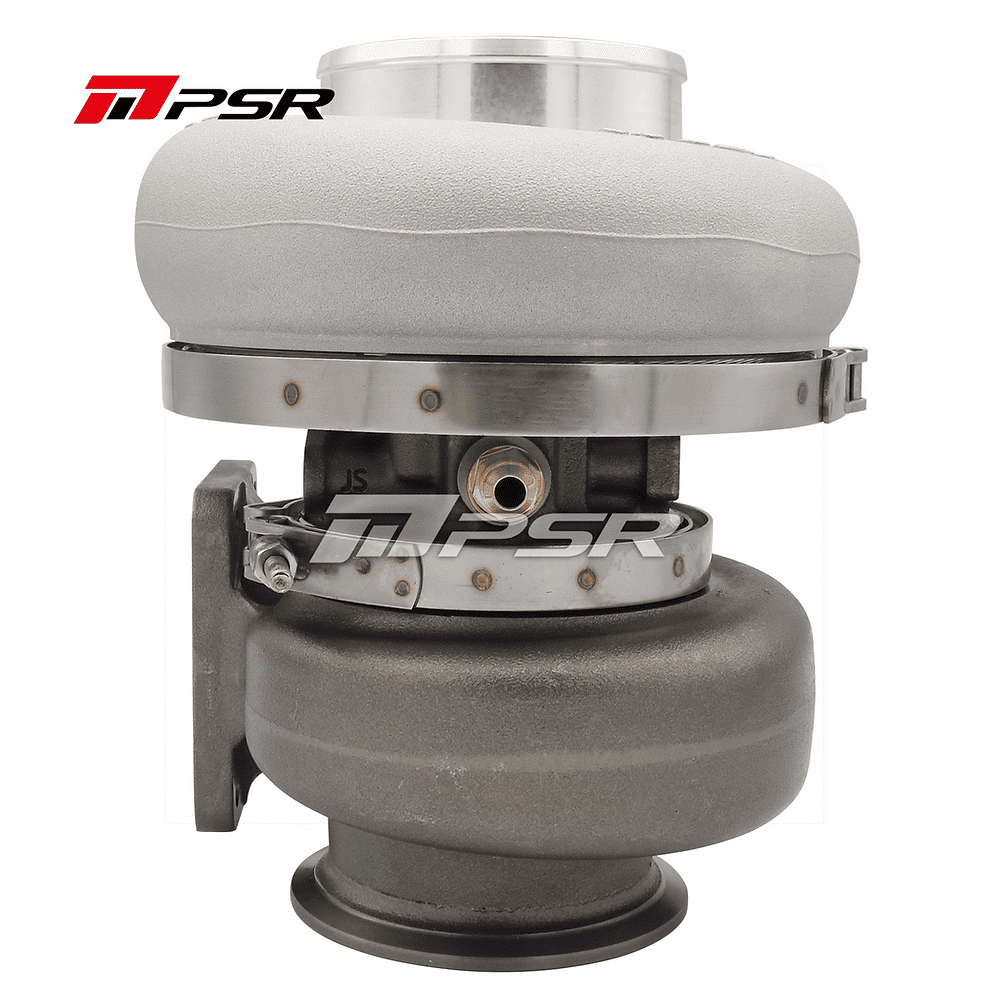

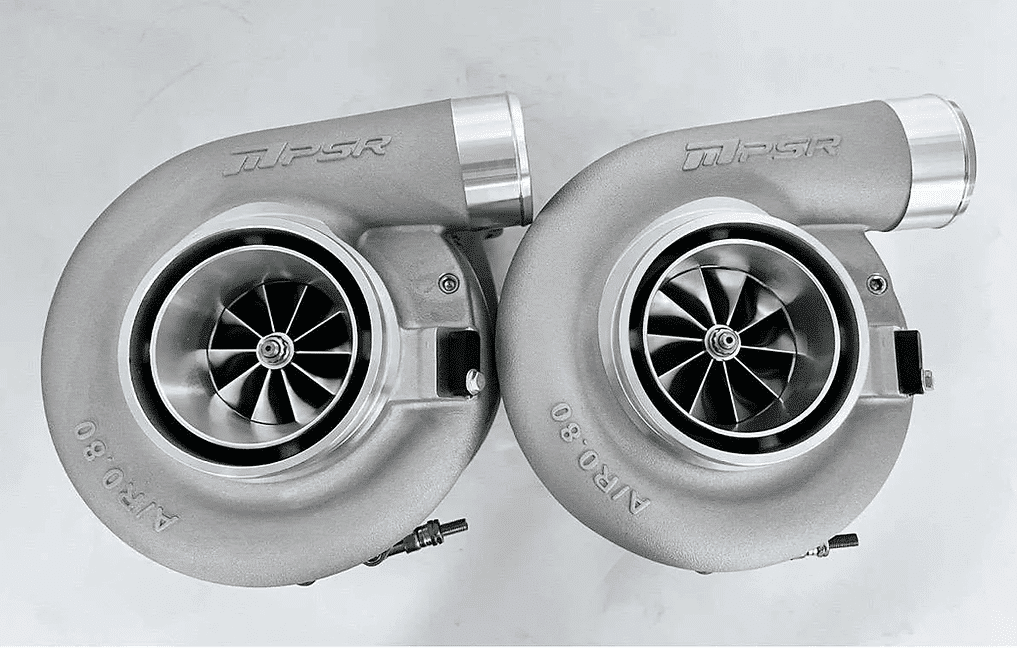

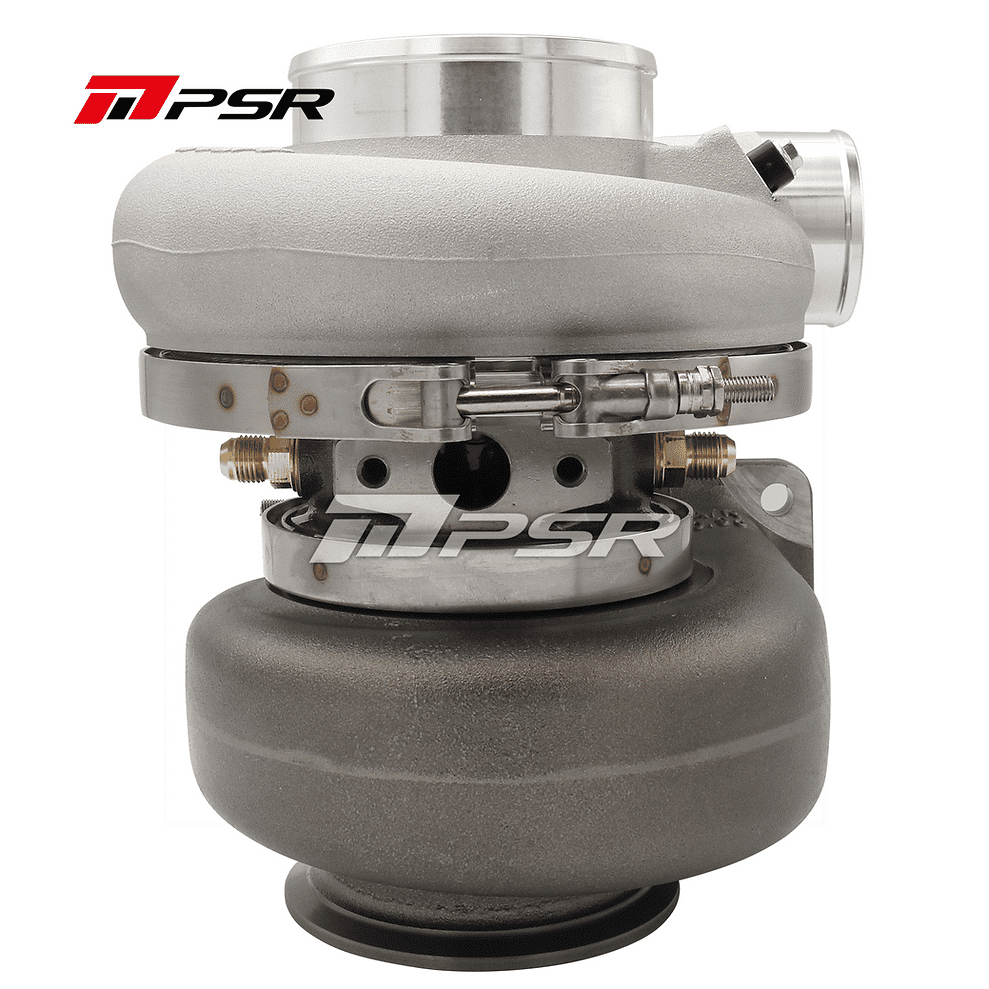

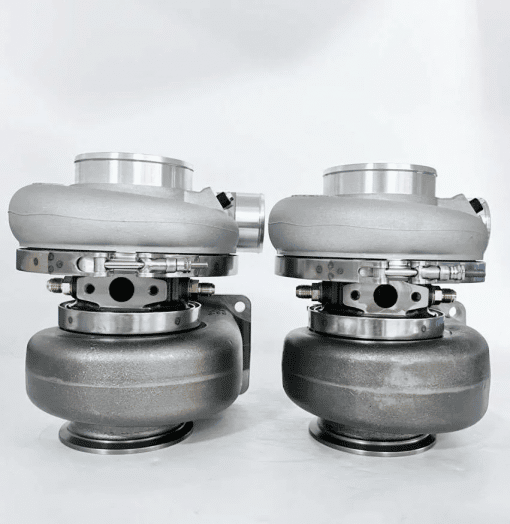

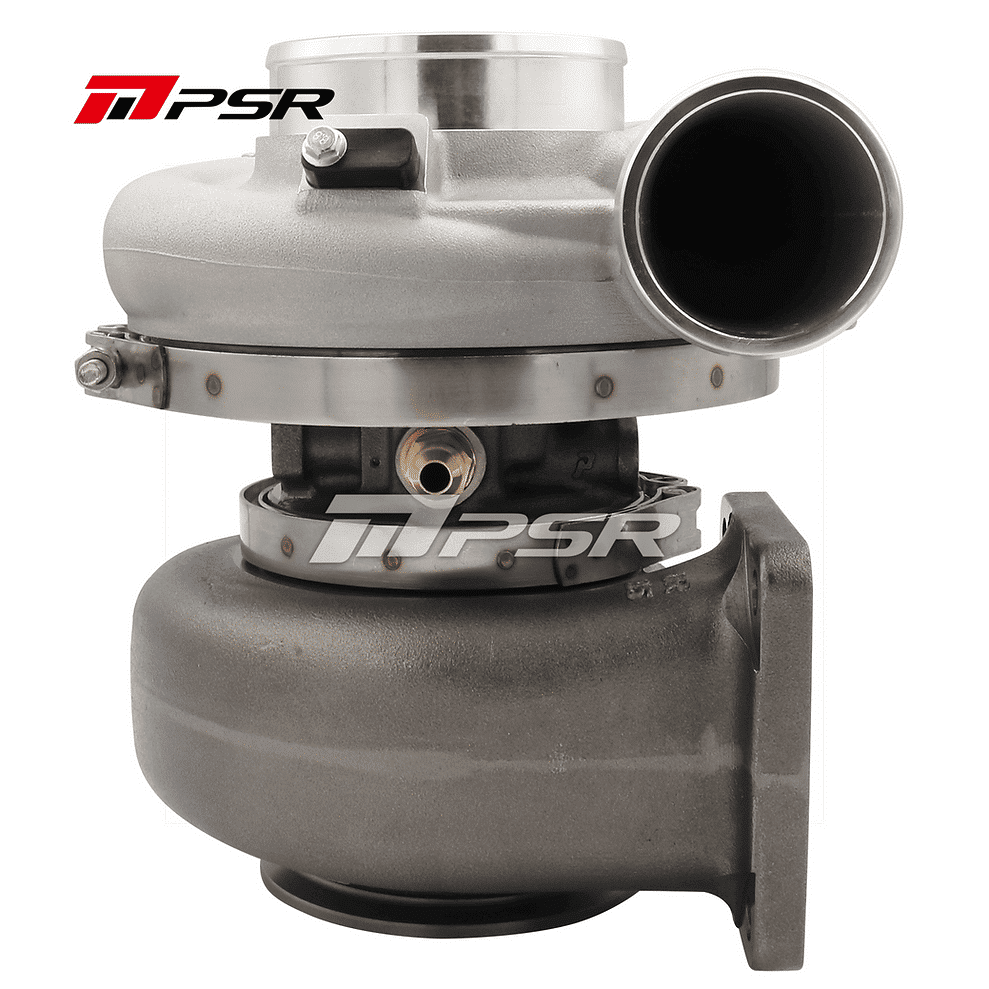

Pulsar PSR7170G Mid frame Turbo

Dual ceramic ball bearing with steel cage provides optimal turbo response &better durability by reducing shaft motion

71 mm inducer 10 Blade PTG-Aero billet compressor wheel with extended tapered tip technology

9 Blade PTG-Aero Inconel 713c turbine wheel

Anti-Surge ported-shroud compressor inlet, with integrated pressure and speed sensor ports.

Water fittings included

2 Turbine housing options available

HP rated at 1150HP at the flywheel

Suitable engine size: 2.0-6.0L

Spec

Compressor Wheel: 71*88mm

Turbine Wheel: 77*70mm

Compressor Inlet: 4? Hose

Compressor Outlet: 2.5? V-Band

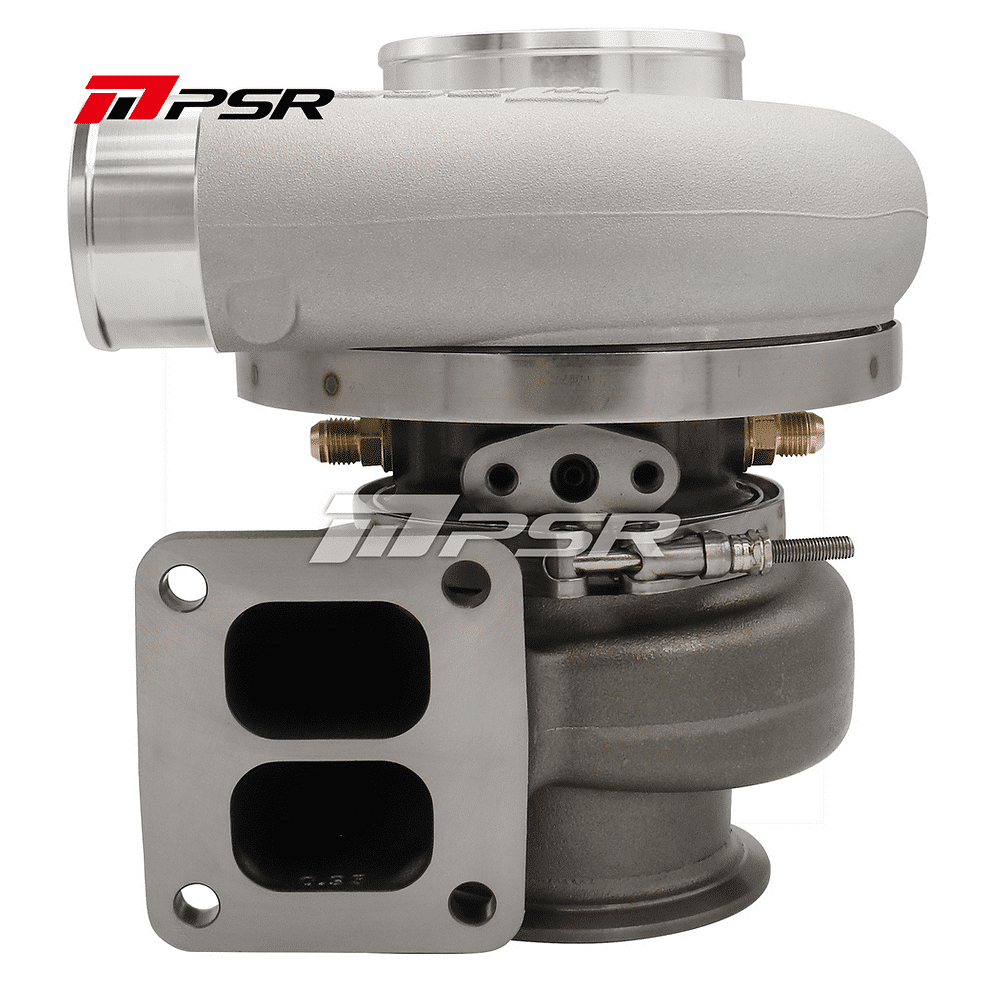

Turbine Inlet: T4 divided

Turbine Outlet: 4? V-Band

Water Ports: -6AN

Oil Feed: Flange not supplied(Recommended size: -4AN Std T4 Flange )

Oil Drain: -12AN(O-Ring sealed Flange Kit Incl?)

2 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R
