PPG – NISSAN GT-R GTR – GTS-T – R32 – R33 – R34 6 SPEED SEQUENTIAL GEAR SYSTEM

Nissan Skyline GT-R R32 – R33 – R34

6-speed Sequential Gear System Conversion

(from 5-speed H-pattern)

We could ramble on about the ability of this sequential gear system for the NISSAN GT-R platform however sometimes feedback from customers tells you all you need to know and understand about the product.

In car video by Andrew Hawkins (Motive DVD)

?

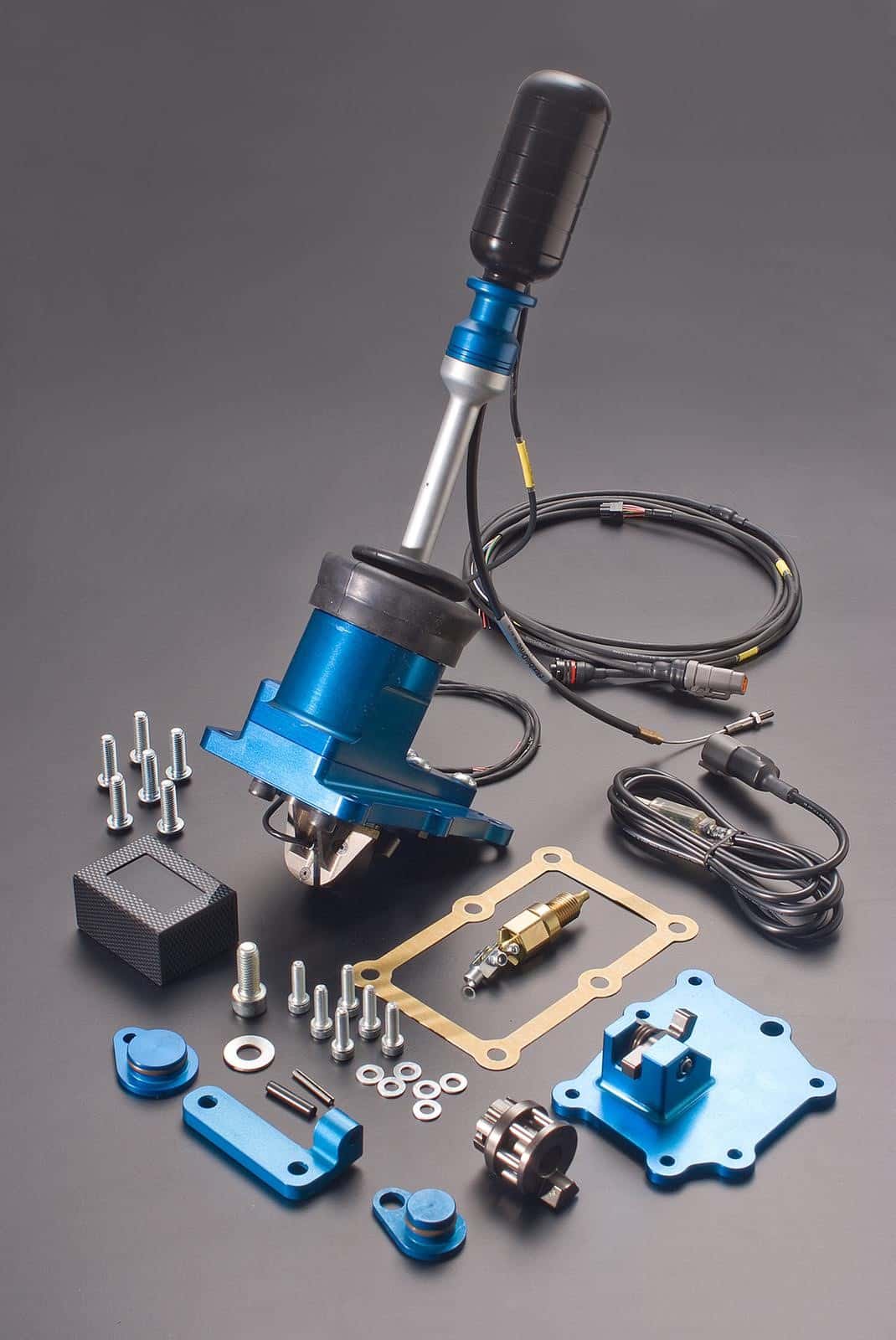

Gear System Includes

1st-6th gears, fully assembled input & output shaft, including selector forks and actuator

Two-part input quill shaft with spigot bearing journal

Heavy-duty, nitrided steel selector forks

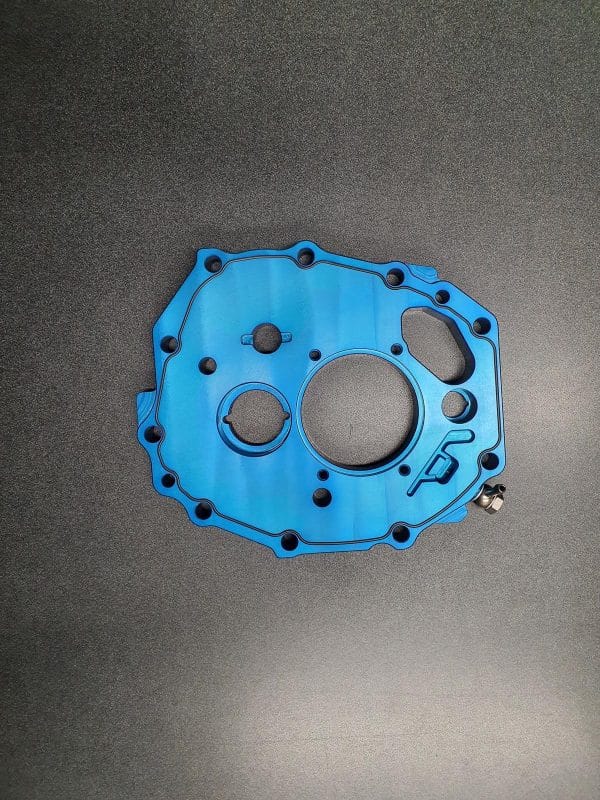

Billet aluminum sandwich plate assembly

Low-mass billet T606 aluminium H-section gear stick with integrated reverse lever

Sensors, actuators, cables and load cell ??

?Ratio
2.706 – 1.894 – 1.471 – 1.184 – 1.000 – 0.812

Technical Specification

?Lever operation gear change

Gill Blade contactless 360? rotary gear position sensor – closed loop function

DR25 motorsports gearbox chassis loom and program cable

Motorsport load cell for flat shift, throttle blip, downshift function

Unique dog engagement profiles

PPG LCD gear display

Heavy duty nitrided steel selector forks
