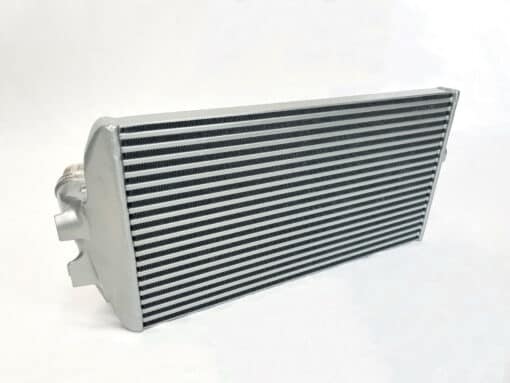

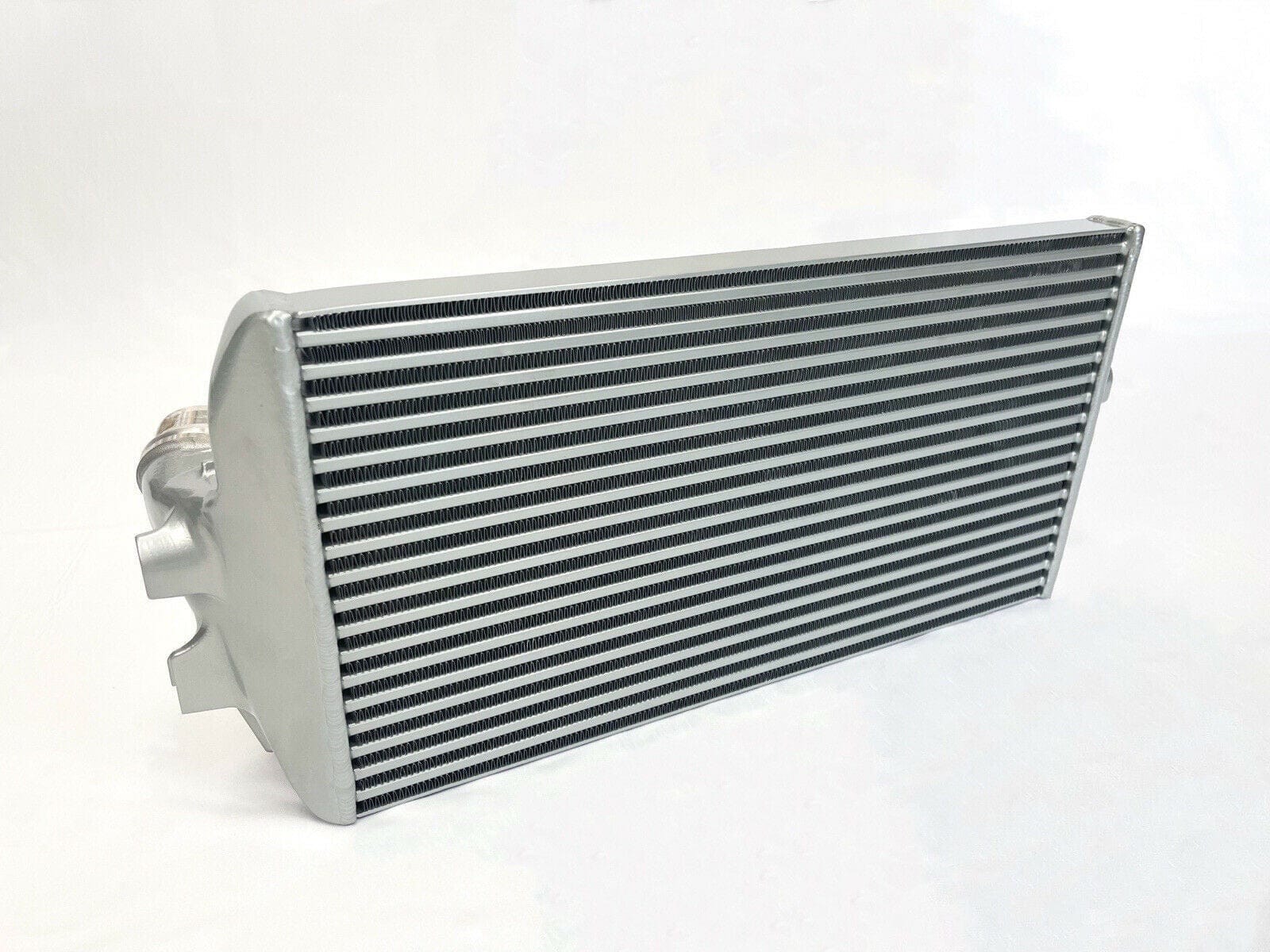

MTC Motorsport BMW 535i Front Mount Tube and Fin Intercooler

We have engineered these intercoolers using a tube and fin core matched to our flowed cast end tanks. This is the most efficient way to keep the intake temperatures low.

We have tested our intercoolers on a few vehicles and found they have absolutely fantastic results. The IAT compared to the standard intercooler are reduced massively which means you get consistent increased performance.

The standard intercooler and the MTC intercooler both had similar intercooler intake temperatures at around 90 degrees through 5 runs in winter.

At the other side of the intercooler into the engine the standard intercooler temperatures were not great at 55-60 degrees whereas the MTC intercooler temperatures were between 18-22 degrees over 5 runs.

The MTC intercooler features a massive competition core with flowed cast end tanks and 6 extra rows at the front to increase the surface area

Pressure tested to 3 bar, these intercoolers are proven to handle over 500bhp

This intercooler weighs around 10kg and provides near 100% more volume and 100% more surface area than the standard intercooler.

The intercooler fits to the standard hoses perfectly and the standard clips on the car are fine to use.

On some models you will have to make 2 small 90 degree brackets up to hold the intercooler in place on the car (we don’t supply the brackets but they are very simple to make).

The intercooler will fit plug and play with the following vehicles:

BMW 7 Series – F01/F02 – 730d, 740d, 740i

BMW 6 Series – F06/F12/F13 – 630d, 640d, 630i

BMW 5 Series – F07/F10/F11 – 518d, 520d, 525d, 530d, 535d, 535i

Professional installation is recommended and should take approximately 2-3 hours.

This product comes with a lifetime warranty.
