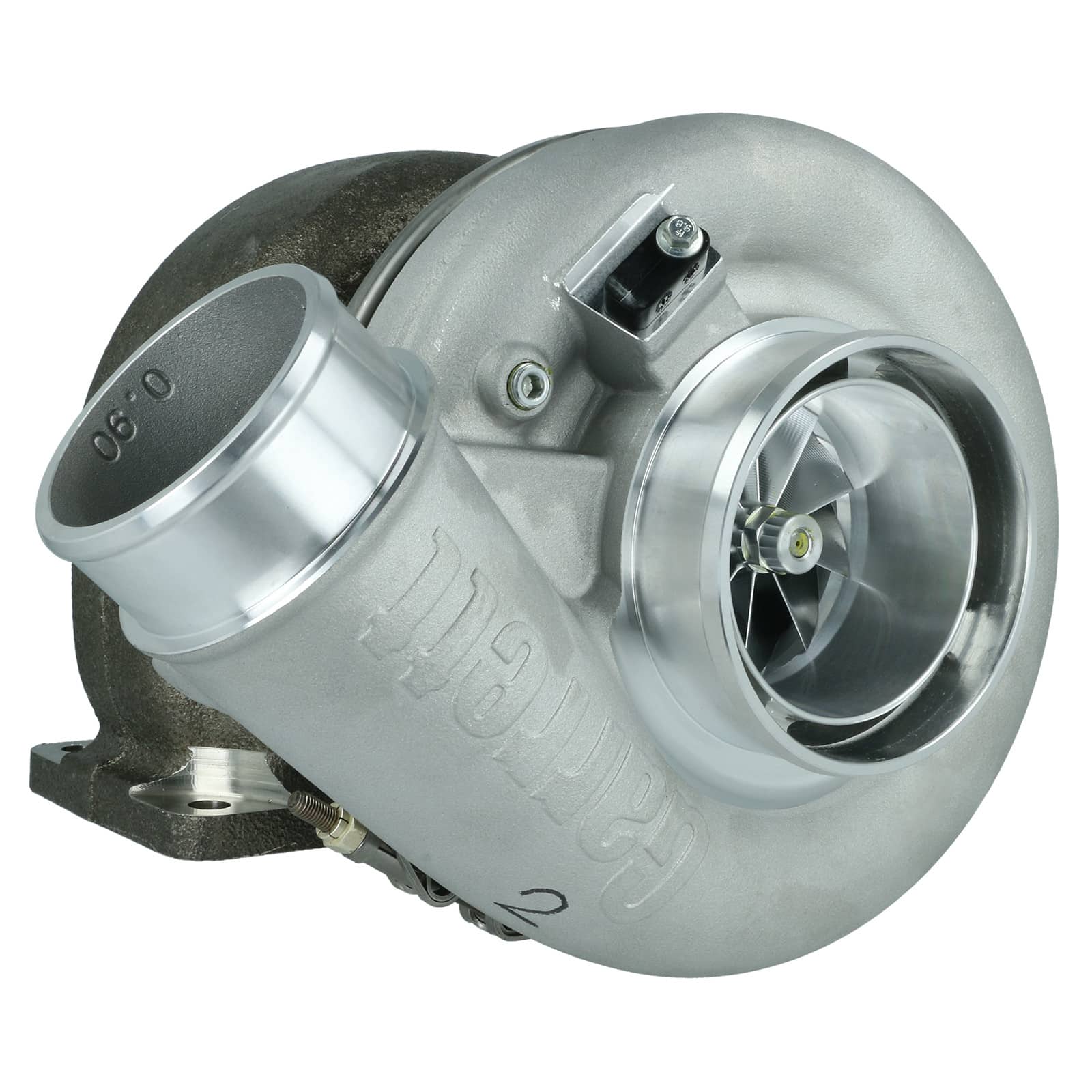

Garrett – G42-1200 Compact (Variations)
Garrett – G42-1200 Compact (Variations)
The newest generation of Garrett turbocharger
A real evolution of the GTX turbos
Turbocharger with various flanges, A/R values and wastegate options
Garrett now launches a new line of turbochargers that are close to the BorgWarner EFR turbochargers – the G-Series. The special features are:
– Forged and machined compressor wheel of the latest generation with up to 15% more flow (than the GTX series, Gen II series) compressor wheels
– Highflow compressor housing with optional connection for the speed sensor
– Turbine wheel made of Mar-M (up to 1050? C resistant) with 74% more efficiency
– Stainless steel turbine housing resistant up to 1050? C
– Exhaust housings with V-band inlet and V-band outlet
– CHRA with V-band to be twisted individually
– Double ceramic ball bearings
– 4 water connection ports
– Double seal on the piston rings
– Right and left rotating turbochargers available (Standard or Reverse Rotation)
Power range: Up to 1200 HP
Engine capacity: 2,0 up to 7,0 Liter
Turbo inlet flange: T4 Twinscroll, V-Band
Turbo outlet flange (downpipe flange): V-Band
Compressor facts:
Inlet: 73,00mm
Outlet: 91,00mm
Trim: 65
A/R Value: 0.90
Turbine facts:
Inlet: 82,00mm
Outlet: 75,00mm
Trim: 84
Turbine housing: Available with V-Band flanged exhaust housing
