DO88 Performance – Vauxhall Insignia A 2.0T 2.8T 2.0 TiD / TTiD- DO88 Performance Intercooler – ICM-370-INSIGNIA

DO88 Performance – Vauxhall Insignia A 2.0T 2.8T 2.0 TiD / TTiD- DO88 Performance Intercooler – ICM-370-INSIGNIA

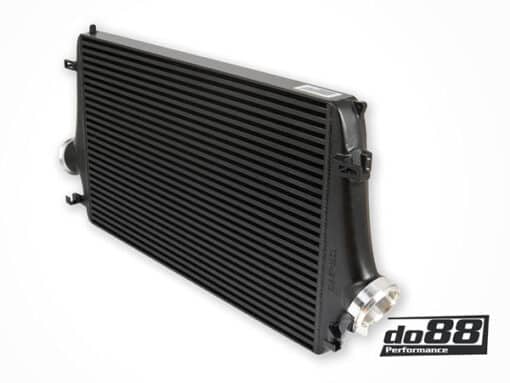

Performance Turbo Intercooler

To Fit: Vauxhall Insignia A – 2008 to 2017 – Displacement over 2,0 litres: 2.0T / 2.8T / 2.0TiD / 2.0TTiD petrol & diesel

Also suitable for Buick Regal – 2011 to 2017 – Displacement over 2.0 litres.

Greater core volume: 14.048cm3 (7.735cm3), 81% larger!

Larger frontal cooling area , 2.810cm2 (2.417cm2), 16% larger!

Air flow at 0,15bar/2,18psi pressure drop: 410 CFM (339 CFM), 21% higher!

See enlarged images for more details!

In 2022, do88 is happy to launch a number of products for the Saab NG 9-5, Opel / Vauxhall Insignia and Buick Regal!

We started the development by 3D-scanning the entire designated area on the car. This allowed us to work in a sensible manner, with the products in our CAD-environment using SolidWorks. The entire system is optimised for airflow, radiuses and angles are reworked many times to achieve the best result! The finished product is verified with both Computer Flow Dynamics (CFD) as well as with our Superflow SF1020 flowbench. All these efforts are made to offer real and trustworthy data. This intercooler comes with CNC-machined connections as per the OE layout, thus utilising the original hoses as these are of decent diameter already. Alongside this intercooler you can also choose the intercooler pipework and for that purpose we include an adapter that suits the OE-style connections, providing a hose connection for our piping.

This intercooler is constructed to deliver the best cooling efficiency during tough conditions. Exclusively manufactured in aluminium with continuous welds, it guarantees reliability and endurance when you really need it. The increased core volume improves cooling efficiency and lowers the intake air temperature. Naturally, this being a do88 performance product, we have executed thorough tests under the development of this product to ensure best performance. The end tanks are cast for optimum airflow and come with machined fastening points for both the AC condenser and radiator. This intercooler is immensely optimised to the given space for an easy drop-in-fitment.

The 81% increased core volume is an achievement we are proud of. It?s a remarkable difference. The engine pulls better all over the power band and withstands repeated full throttle runs without building heat. The perception of an intercooler being something to upgrade only after a major engine tune is false, yet widely spread among customers and car people. During hot Swedish summer days, at repeated pulls, inspired driving or even at ordinary driving in a hotter climate area, it doesn’t?t take much of an effort from the engine to generate dangerously high inlet temperatures ? even on a standard, non-tuned car. The cooling capacity with an OE-intercooler is in many cases inferior which will affect the usable power outtake. The heat must be eliminated, or else the promised output won?t be at hand when you demand it. With our intercooler you can rest assured the power is there, always. In addition, the improvement in airflow and reduction of pressure drop will be noticed behind the wheel. More air into the engine gives more output ? bingo!

This product comes with everything necessary for an easy installation, without the need for cutting or in any way changing the car?s original shape. Bolts, washers and mounting instructions are of course included.

Take care of your engine. Choose do88.

Installation instructions can be found here.

Equivalent to part numbers: 13241751, 1302647 (ref only)

Ref: ICM-370-INSIGNIA
