DO88 Performance – Toyota Yaris GR (2020-) DO88 Performance Engine Oil Cooler – OC-180

DO88 Performance – Toyota Yaris GR (2020-) DO88 Performance Engine Oil Cooler – OC-180

do88 Oil Cooler for Intercooler

To Fit: Toyota Yaris GR (2020 onwards) – designed to be installed between our do88 intercooler and radiator, but is also possible to install with the OE intercooler according to installation instructions. (Some additional fittings must be purchased locally by the customer to be able to fit with an OE intercooler)

Racing oil cooler for your Toyota Yaris GR!

Significant advantages with the do88 oil cooler:

SETRAB slimline oil cooler with large front area

Custom designed brackets

Lightweight motorsport grade PTFE hoses with crimped fittings of correct type and size in all ends to avoid unnecessary joints and adapters

Sandwich plate adapter with thermostat (opening temperature 80?C)

Lowers oil temperature about 20?C at track use!

The do88 Yaris GR performance upgrade oil cooler kit is designed to maintain a healthy engine oil temperature even during heavy load such as track use. This is really needed as oil temperatures too high might harm the engine and during track use the oil temperature will be too high and just keep on rising. In the same scenario with do88 racing oil cooler installed, the temperature will be significantly lower and more stabilised. During our tests, the do88 racing oil cooler lowered the engine oil temperature about 20?C!

This oil cooler kit is designed for a perfect fit with do88 Yaris GR performance intercooler but it is also possible to install with the original intercooler if that is relocated in forward direction according to installation instruction. This oil cooler can be installed with other aftermarket intercoolers as long as it is possible to install it in a way that creates a gap of a minimum 42mm between the intercooler and the radiator.

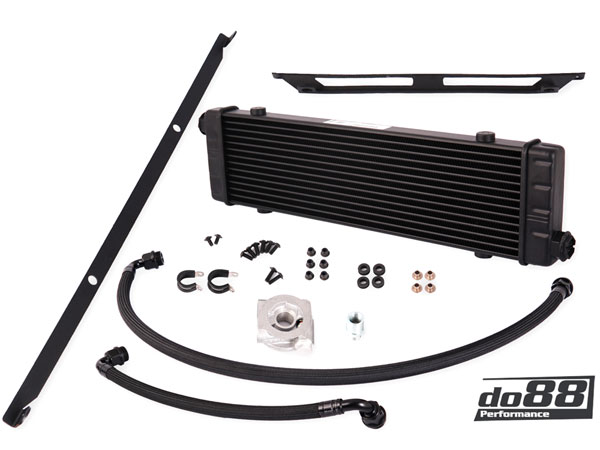

This product comes with everything necessary for an easy installation with a do88 intercooler. Bolts, washers, hoses, brackets and installation instructions is of course included.

**For installation with an oem intercooler, please see instructions step 18-19 . You will need to fabricate/source these additional items:

– 3pcs spacers 22mm long. For example tube with ID 6-8mm and OD 10-12mm.

– 3pcs M6x40 Screws

– 6pcs M6 Washers

Click here to view fitting instructions.

Do take care of your engine – Choose do88!

Equivalent Toyota OE part numbers : N/A, this is bespoke DO88 performance part!
