DO88 Performance – VW Tiguan (MK2) 2016-2019 2.0TSI DO88 Performance Turbo Inlet Pipe – IR-130

DO88 Performance – VW Tiguan (MK2) 2016-2019 2.0TSI DO88 Performance Turbo Inlet Pipe – IR-130

DO88 High Performance Turbo Inlet Pipe

To Fit:

VW Tiguan (MK2) 2016-2019 2.0TSI

High performance turbo inlet, designed by do88. For easy drop-in-fitment in your Audi Seat Skoda VW 1.8 TSI / 2.0 TSI

Significant advantages with do88 turbo inlet pipe (OEM comparison numbers):

Larger diameter: 76mm (70 mm), results in 35% larger flow area!

Air flow at 75 mbar/1,09psi pressure drop, 514 CFM (410 CFM), do88 25 % higher flow!

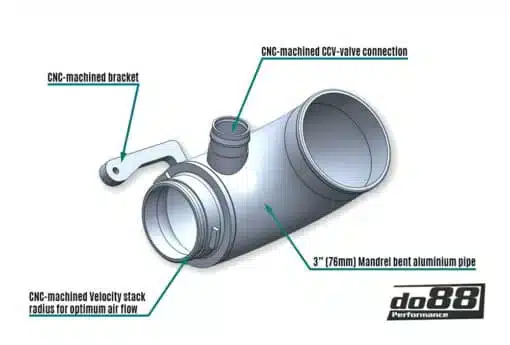

CNC machined turbo flange with flow optimised radius!

Flow optimised silicone hose with stepped inside that match connections to reduce turbulence!

Steel wire reinforced silicone hose for OEM or do88 air box lid.

Available for both original turbocharger or hybrid turbocharges with 53mm inner diameter.

Simple straight forward installation with clear installation instruction. (See installation instruction below for details.)

This turbo inlet pipe is designed for best possible air flow to the turbocharger. Better air flow gives better efficiency and more power! do88 turbo inlet pipe is made of aluminium with CNC machined turbo flange, PCV port and bracket.

It is worth noting that the OEM turbo inlet pipe and hoses are designed for the power level that the car was originally built for. A power increase may mean the OEM pipe and hoses do not have the performance you need. So after an engine software tune the do88 turbo inlet pipe will give a performance increase over the OEM!

This product comes with everything necessary for an easy installation, without the need for cutting or in any way changing the car?s original shape. Installation hardware and mounting instructions are of course included. Do take care of your engine. Choose do88!

Click here to read Installation instruction.

When you order this kit, there are three choices that need to be made:

1. Hose colour: – Three different hose colours are available Blue / Black / Red. There are no performance difference between the different colours, choose which colour you think will be best for your car.

2. Turbo: – Chose the type of turbocharger the inlet pipe should fit, OEM with 48,5mm inner diameter or hybrid with 53mm inner diameter.

3. Air filter: – Chose the type of air box the inlet pipe should fit. OEM or do88.

OEM Part Numbers (reference only):5Q0 129 654 P, 5Q0 129 654 AE, 5Q0 129 654 L, 5Q0 129 635 L, 5Q0 129 635 P,

5Q0 129 635 Q, 5Q0 129 634 P, 5Q0129654P, 5Q0129654AE, 5Q0129654L, 5Q0129635L, 5Q0129635P,

5Q0129635Q, 5Q0129634P

DO88 Reference: IR-130S-48-OEM, IR-130, IR130, IR-130B-48-OEM, IR-130R-48-OEM, IR-130S-48-do88
