BMW B58 1000bhp Manifold Kit

BMW B58 1000bhp Upgrade Kit

BMW B58 1000bhp Upgrade Kit

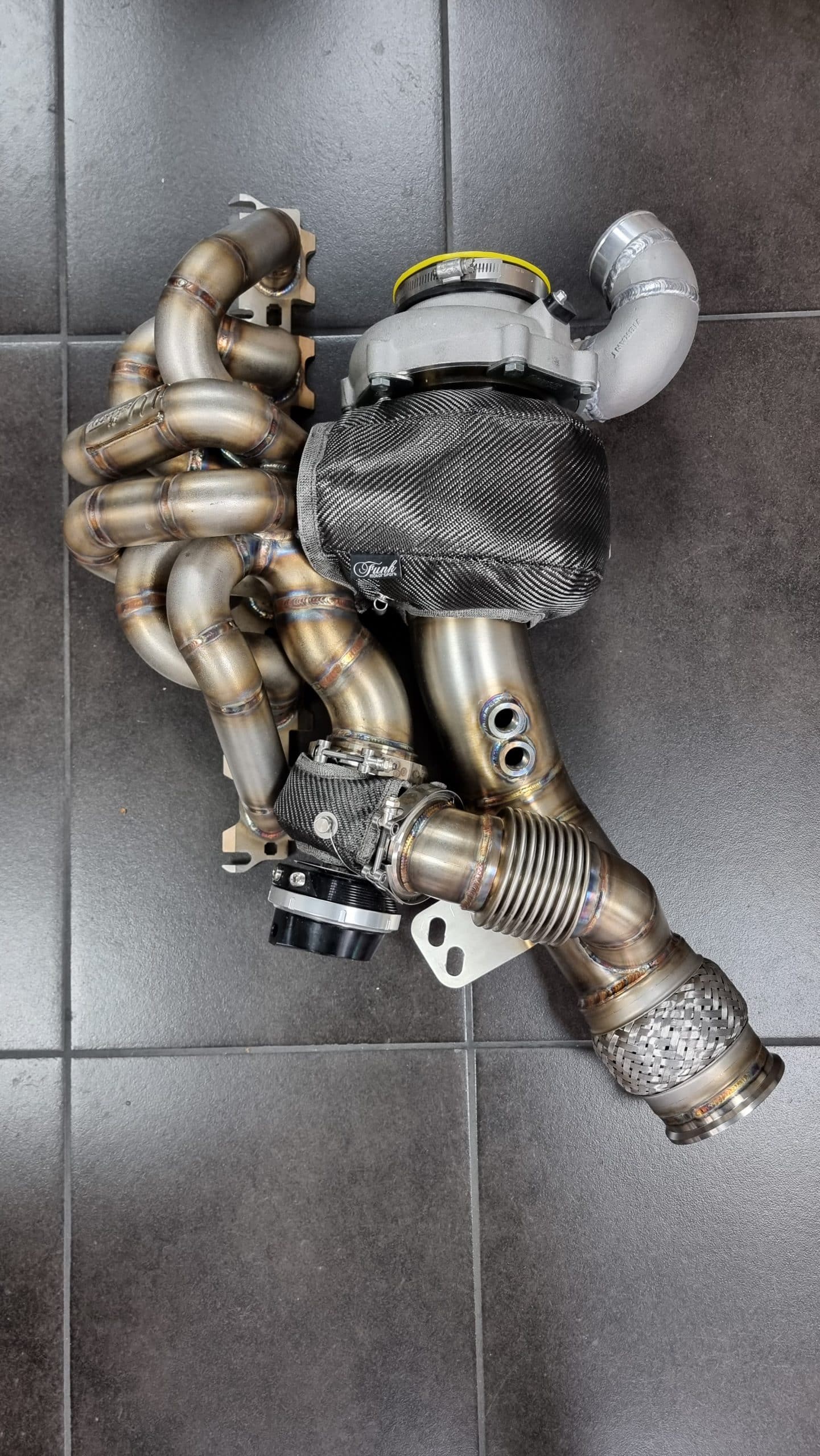

BMW built the B58 engine to make boost but forgot to fit proper turbos. Our B58 Manifold allows the fitment of Garretts G35 series, and the most popular G35-1050 model. We chose to utilize the G-Series as they produce huge power in a tiny package. These turbos are motorsport turbos and cope much better with heat and power than hybrid version of the OEM turbo.

There?s no shortage of BMW B58 exhaust manifolds available. What sets the Walton Motorsport version apart from the competition is our construction methods.

BMW B58 EXHAUST MANIFOLD CONSTRUCTION

Material Selection

First and foremost not all 304 Stainless steel is created equal. We carefully select the exact specification of the tube that we use. The use of poor-quality tube can compromise the whole design. For Instance, exhaust manifolds experience repeated high-temperature cycles. In these situations, we have seen poor tubing split along the seam.
We design the head flanges inhouse. However, we outsource the precision waterjet cutting. We use waterjet cutting as it results in a more accurate cut over traditional laser cutting
Processes

Where the manifold meets the exhaust ports, Walton Motorsports process is to push the tubing through the head flange and TIG weld each side. This process is followed by a selection of finishing tools. We do this to create a smooth port for the gasses to freely flow through. Consequently, this process greatly increases the durability of the manifold. Rather than using the traditional method of welding the tube to the face of the flange. Moreover, our method is where we also face the problem of an oval port needing to transition smoothly to a round tube. The stubs process, in short, helps increase power through the improved flow.

The collector we use is a custom-designed merge collector. We proudly design and build in house. This results, in allowing us to add some features to set it apart from the competition. The first step is to TIG weld the seams inside the collector. Our fabricators then turn their attention to the outside of the collector. They TIG Weld the seams from this direction. The next step is to port the inside of the collector back to a smooth point. Subsequently, this improves gas flow and adds a large amount of strength. Without welding the inside of the collector there is a danger of small fragments breaking off at the high temperatures. These fragments will then make their way through your expensive turbo. We don?t need to tell you how bad that can be.

Contact Us for further Information by filling out this FORM
