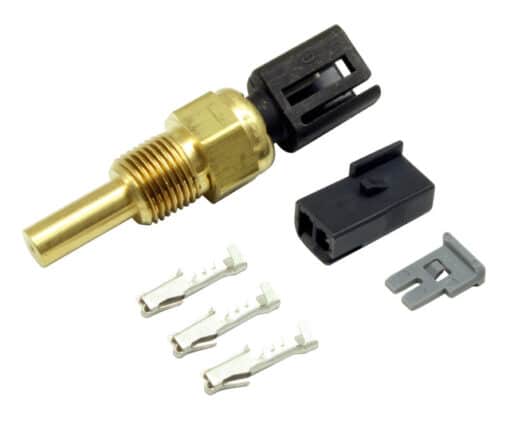

AEM – Water Temp Sensor Kit. 1/8″NPT. Includes: Water Temp Sensor, Plug, Pins & Pin Lock – 30-2012

AEM – Water Temp Sensor Kit. 1/8″NPT. Includes: Water Temp Sensor, Plug, Pins & Pin Lock – 30-2012

AEM – Water Temp Sensor Kit. 1/8″NPT – 30-2012- AEM Water Temp Sensor Kit. 1/8″NPT. Includes: Water Temp Sensor, Plug, Pins & Pin Lock

Accuracy: < 2?C / 3.6?
Operating Temp: -40C to 200C / -40F to 392F
Resistive Range (?): See Table
Dissipation Constant: 12 mW/?C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
Sensor Body Material: Brass
Thread: 1/8″-27 PTF
Hex Size: 1/2″
Installation Torque: 13.5Nm / 10 ft-lbs
Weight: 12.2g
Elec. Termination: Connector. Includes mating connector, pins & pin lock
Includes: Water Temp Sensor, Connector, Pins & Pin Lock

AEM offers 1/8″ NPT DTM-Style Connector(PN 30-2013), 1/8″ NPT (PN 30-2012) and 3/8″ NPT (PN 30-2011) water/oil temperature sensor kit. Find the specifications of our fluid temperature sensors below.

30-2013: Temperature Sensor with 1/8″ NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins

30-2012: Temperature Sensor with 1/8″ NPT Male Thread, Plug, Pins & Pin Lock

30-2011: Temperature Sensor with 3/8″ NPT Male Thread, Aluminum Bung, Plug, Pins & Pin Lock

AEM was the first aftermarket company to create a standalone engine management system that plugged into a vehicle’s factory wiring harness, which dramatically simplified the conversion to programmable EFI for racers by mitigating the need for a bespoke wiring harness.

We pioneered the Wideband Air/Fuel Ratio Controller Gauge, creating the fastest-responding, most accurate wideband on the market and making this technology affordable for all racers and enthusiasts.

We saw a need for better data visualization and logging for racers, so we created the CD Carbon Digital Dash line that will communicate with virtually any CAN-based device regardless of manufacturer, providing racers with the ability to see and log every channel on their vehicle, regardless of where the data is coming from.
