AEM – K-Type Closed Tip Thermocouple 10′ Wiring Extension Kit – 30-2066

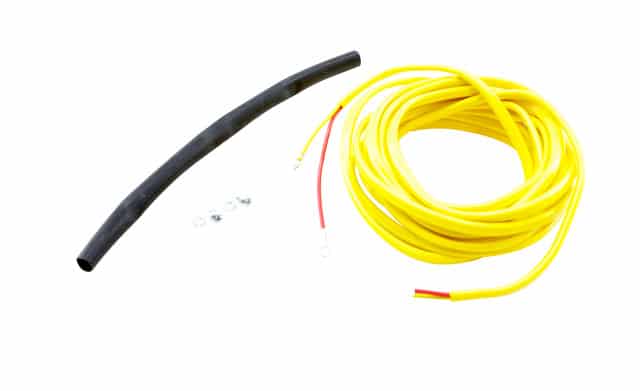

AEM – K-Type Closed Tip Thermocouple 10′ Wiring Extension Kit. Includes: 10′ Wiring Extension, 2 X 4-40 Hex Nut, 2 X 4-40 Screw & 6″ Heat Shrink Tubing 30-2066

AEM – K-Type Closed Tip Thermocouple 10′ Wiring Extension Kit – 30-2066 – Includes: 10′ Wiring Extension, 2 X 4-40 Hex Nut, 2 X 4-40 Screw & 6″ Heat Shrink Tubing

RTD and K-Type Thermocouple sensors are perfect the perfect solution for viewing and logging various temperatures including exhaust gas temps (EGTs), cylinder head temps, pre and post intercooler temps, air temps, water temps, fluid temps, disc brake temps and more. AEM offers a durable closed-tip RTD-type high temp sensor (PN 30-2052) and an inexpensive, fast-responding K-Type, closed tip thermocouple sensor (PN 30-2068 sold individually or in 2-or 4-packs).

AEM?s RTD-Type Temperature Sensor (PN 30-2052) is packed with features that deliver consistent measurement and long life. It features a closed-tip design that lasts longer than the previous generation?s perforated tip design and the tip is smaller for less intrusion?and less restriction. Inconel-tubing protects the wiring, which is terminated with a high-quality DTM-style 2-pin connector. The sensor reads a temperature range of -40 to 1,560 degrees F (-40 to 850 degrees C), and its thin-film platinum element provides a high degree of accuracy (+/- 0.9% from 536 to 1,560 degrees F). Our RTD-Type Sensor features a 90-degree bend at the sensor tip for easier installation in tight spaces, and it includes a weld-in sensor bung with machined M14x1.5 threads.

AEM’s K-Type Thermocouple Sensor includes a closed-tip TC sensor with an Inconel sheath, 10′ extension wire, 1/8″ NPT compression fitting, and ring and terminal harness. These are sold individually and in 2- and 4-packs.PN 30-2065 is a K-Type replacement sensor only. If you need to rewire an existing K-Type thermocouple sensor, PN 30-2066 is a wiring extension harness that includes 10′ of wiring, hex nuts, screws and Inconel sheath. NOTE: For the most accurate readings using a K-Type thermocouple sensor, see our 8-Channel K-Type EGT CAN Module, PN 30-2224.
