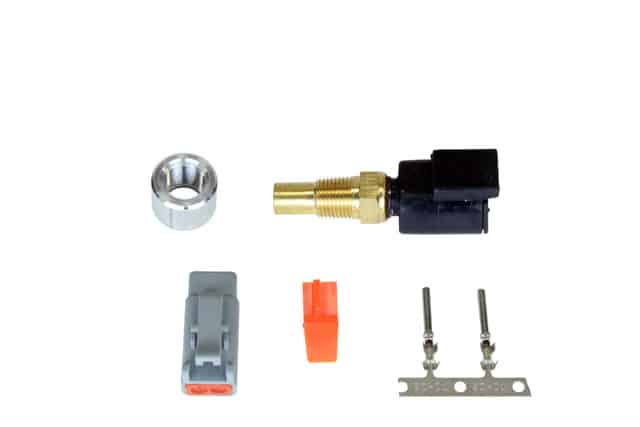

AEM – Fluid Temperature Sensor DTM-Style Kit. Includes 1/8″ NPT Temperature Sensor with High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins – 30-2013
AEM – Fluid Temperature Sensor DTM-Style Kit – 30-2013 – AEM Fluid Temperature Sensor DTM-Style Kit. Includes 1/8″ NPT Temperature Sensor with High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins
Accuracy: < 1.5?C / 2.7?F
Operating Temp: -20C to 150C / -4F to 302F
Resistive Range (?): See Instructions
Dissipation Constant: 12 mW/?C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
Sensor Body Material: Brass
Thread: 1/8″ NPT
Hex Size: 1/2″
Installation Torque: 13.5Nm / 10 ft-lbs
Weight: 10g
Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals
Includes: Water Temp Sensor High Performance DTM-Style, 1/8″ NPT Alumium Bung, Mating Connector, Pins & Wire Seals
