AEM – CD-5F Carbon Flat Panel Non-Logging/ Non-GPS Display 30-5600F
AEM – CD-5F Carbon Flat Panel Non-Logging/ Non-GPS Display 30-5600F – AEM Flat Panel Digital Dash Display, CD-5 non-logging, non-GPS racing dash, CAN input only, 5-inch diagonal screen, carbon fiber enclosure, wiring harness included, Does Not Include Buttons (See PN 30-3610)
CD-5 Carbon Flat Panel Digital Dash Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon Dashes, but do not have buttons or an LED shade hood built into the enclosure.

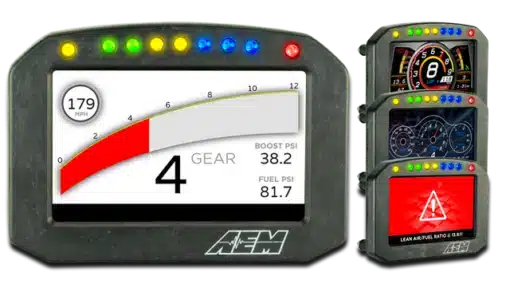

CD-5 Carbon Flat Panel Digital Dash Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the enclosure and are fully programmable.
Four CD Carbon Flat Panel packages are available:
PN 30-5600F, CD-5F Carbon Flat Panel Non-Logging/ Non-GPS Display
PN 30-5601F, CD-5FL Carbon Flat Panel Logging Display
PN 30-5602F, CD-5FG Carbon Flat Panel Non-Logging Display
PN 30-5603F, CD-5FLG Carbon Flat Panel Logging Display with Internal GPS
Features
Full color 5? screen with 800×480 resolution
Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
Layout files interchangeable between all CD Carbon Dashes
Wiring interface/harnesses are identical between all CD Carbon Dashes
Rugged, lightweight flow-molded carbon fiber composite enclosure
IP66 water resistance ? open cockpit safe
Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
Use the included page layouts and input your channels and text, or create your own from scratch
Free DashDesign Graphics Editor software
Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
Two programmable LEDs
Odometer function
Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
?Headlight-in? connection dims the dash and LEDs during night operation
Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
User supplied graphics can be changed based on channel values (up to the full screen size)
Convert CAN bus channel values to user-defined text
Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
Available with or without 200Mb internal logging (up to 1,000Hz/channel)
Available with or without onboard 20 Hz GPS receiver and antenna
Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
KEEP IT SIMPLE OR GO HARDCORE
CD-5 Carbon Flat Panel Dashes can simplify the update of an instrument cluster or ease the instrumentation configuration of a new vehicle build. Since the CD-5 Carbon Flat Panel Display only requires a single cable for power, ground and receiving CAN data, the wiring goes from complex to a simple one plug connection. Street rods, kit cars, and resto-mods using late-model crate engines no longer have to be concerned with adding a full set of gauges and trying to keep the wiring clean, or having to double up sensors on the engine so the ECU and gauges both have data ? The CD-5 Carbon Flat Panel Digital Dashboard Display can see everything the ECU is seeing via a single cable connection ? and that means so can you!
Want to go hardcore? CD-5 Carbon Flat Panel Dashes make it easy. Add additional sensor data with our 22 Channel CAN Sensor Module, create custom layouts, integrate track mapping and data logging for driver coaching, see predictive and actual lap times and set user-defined prioritized alarms – it’s all possible with the CD-5 Carbon Flat Panel Dash. Simple or Hardcore; the choice is yours and the CD Carbon’s capabilities are nearly limitless.
VIEW AND LOG DATA FROM OVER 250 CAN-ENABLED DEVICES!
CD Carbon Dashes receive channels from CAN bus inputs and do not require special modules to read AEM and/or non-AEM CAN signals. They communicate with 45 AEM devices, are in-house tested to work with 159 non-AEM devices and we have DBC CAN files for 52 more non-AEM devices. A complete list of validated non-AEM devices is available.
LOGGING, TRACK MAPPING, SPEEDO and ODO CAPABILITIES
CD Carbon Dashes are available with a 200MB onboard logger (CD-5FL/LG), which provides about 24 hours of logging time at up to 1,000 Hz/channel. Individual channel log speeds are adjustable. Creating track maps, viewing/recording lap times and split times, seeing predictive lap times on the display with a live Gain/Loss value, and adding a Speedometer and/or Odometer are all possible with by using a GPS-enabled CD Carbon Dash.
