AEM Universal 12 Position Trim Pot

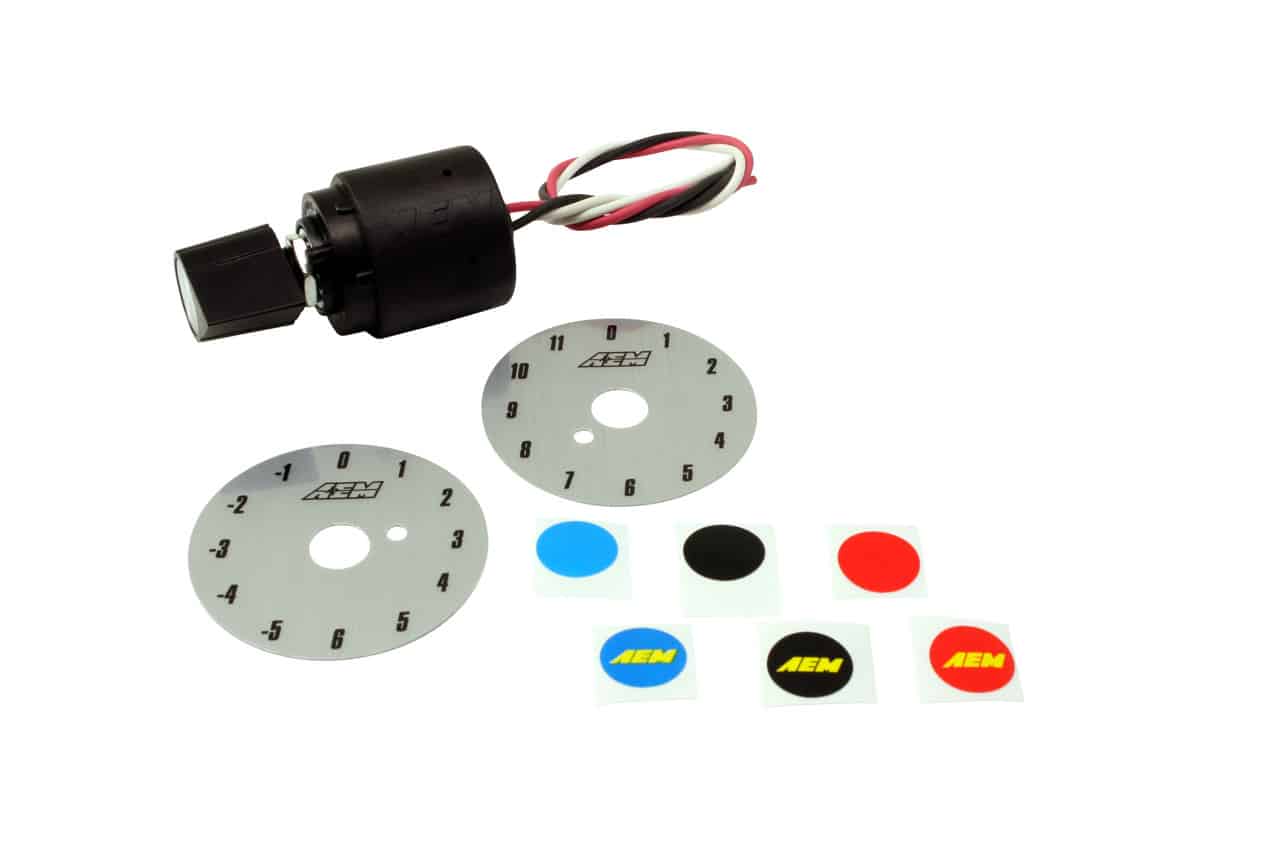

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals.

Can be used with virtually any engine management system
Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob
Adjusts a number of trims, including ignition timing, fuel, boost, etc.
2 Position Trim Pot Performance Specifications:
Total Resistance: 14.3KO
Cycles Minimum: 10,000
Positions: 12
Degree Rotation: 330
Mounting: 3/8″ Hole
Jam Nut: 1/2″ Hex
Knob Set Screw: 1/16″ Allen
Supply Current: 5 Vdc
Output: .See table below
Over mold weatherproof body with 12″ leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
