AEM – Air Temp Sensor DTM-Style Kit – 30-2014

AEM -Air Temp Sensor DTM-Style Kit. Includes 1/8″ NPT Air Temperature Sensor with High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins 30-2014

AEM – Air Temp Sensor DTM-Style Kit – 30-2014 – AEM Air Temp Sensor DTM-Style Kit. Includes 1/8″ NPT Air Temperature Sensor with High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins

AEM’s Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.

Weatherproof connector
Includes mating connector & pins
Senses the air temperature on the inlet side of the engine
Accuracy: < 1.5?C / 2.7?F
Operating Temp: -20C to 150C / -4F to 302F
Resistive Range (?): See Instructions
Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
Sensor Body Material: Brass
Thread: 1/8″ NPT
Hex Size: 1/2″
Installation Torque: 13.5Nm / 10 ft-lbs
Weight: 10g
Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals

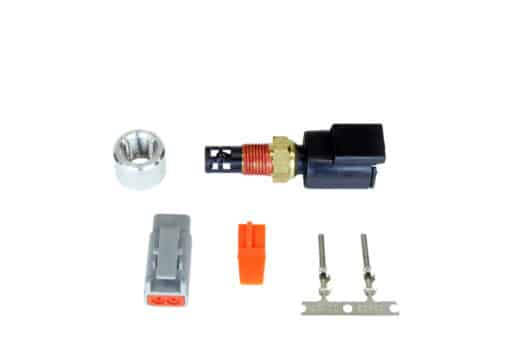

Includes: Air Temp Sensor High Performance DTM-Style, 1/8″ NPT Alumium Bung, Mating Connector, Pins & Wire Seals
